YR-10 PNEUMATIC POWER ROLL FEEDER

PAGE 3

	YR-10 PNEUMATIC POWER ROLL FEEDER
PAGE 3

OUTSTANDING FEATURES

Ą Variable feed speed is controlled by a frequency inverter.

Ą Feed roller movement is actuated by pneumatic-air system.

Ą Solid cast iron body provides reliability of accurate and superior timber cutting for a longer life time.

Ą Pressure of feed roller against stock materials is adjustable.

Ą Feed roller is assorted by cast iron and rubber resin made.

[SF-800]

SF-800 POWER BAND RESAW
YR-10 ROLL FEEDER

YR-10 ROLL FEEDER

[YR-10 and YCX-60]

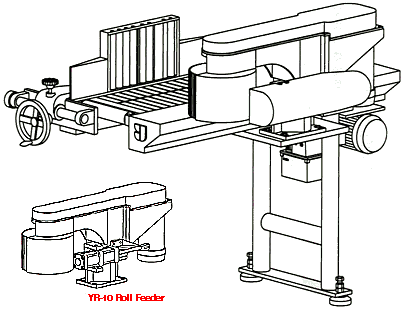

YCX-60 CATERPILLAR FEEDER & YR-10 Roll Feeder

SPECIFICATIONS

HEIGHT OF ROLLER HEAD 200 mm (8")

DIAMETER OF FEED ROLLER 285 mm (11")

HEIGHT OF ROLLER FENCE 270 mm (10")

MAX. ROLLER TO BLADE CLEARANCE 308 mm (12")

MAX. FENCE TO BLADE CLEARANCE 200 mm (8")

MAX. SWING ANGLE OF ROLLER 45 degrees

DIAMETER OF AIR-CYLINDER 63 mm dia.

FEED SPEED 0-76 m / min.

MACHINE WEIGHT 200 kgs

MACHINE DIMENSION 1200(L) x 440(W) x 480(H) mm

SPECIFICATIONS
HEIGHT OF ROLLER HEAD	200 mm (8")
DIAMETER OF FEED ROLLER	285 mm (11")
HEIGHT OF ROLLER FENCE	270 mm (10")
MAX. ROLLER TO BLADE CLEARANCE	308 mm (12")
MAX. FENCE TO BLADE CLEARANCE	200 mm (8")
MAX. SWING ANGLE OF ROLLER	45 degrees
DIAMETER OF AIR-CYLINDER	63 mm dia.
FEED SPEED	0-76 m / min.
MACHINE WEIGHT	200 kgs
MACHINE DIMENSION	1200(L) x 440(W) x 480(H) mm
